13X Molecular Sieve Desiccant Desulfurization For Liquefied Petroleum Gas & Liquid Hydrocarbon

Xi'an Lvneng Purification Technology Co.,Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

13X Molecular Sieve Desiccant Desulfurization For Liquefied Petroleum Gas & Liquid Hydrocarbon

  • 1
  • 2
  • 3

Brand Name : Xi'an Lvneng

Model Number : 13X-HP Molecular Sieve Zeolite

Certification : ISO9001:2008

Place of Origin : Shaanxi,China

MOQ : 10 Kilograms

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 50 Tons/ per Month

Delivery Time : 3-15 work days

Packaging Details : 1. Carton Drum/25KG 2. Carton Box/25KG; 3. Iron Drum/150KG

Shape : Granular

Color : Beige

Size : 2.0-3.0mm, 3.0-5.0mm,4.0-6.0mm

Package Moisture : ≤ 1.5%

Equilibrium Water Capacity : ≥ 27%

Equilibrium Carbon Dioxide Capacity : ≥ 18%

Attrition Rate : ≤ 0.1%

Bulk Density : ≥ 0.72 G/ml

Contact Now

13X Molecular Sieve Desiccant Desulfurization For Liquefied Petroleum Gas & Liquid hydrocarbon

Product Introduction of 13X Molecular Sieve Desiccant:

Molecular sieve is a kind of silicon aluminate compound with a cubic lattice. The microporous structure of the molecular sieve is uniform, and its cavity diameter size uniform, can the cavity is smaller than the diameter of the molecular adsorption to the interior of the pore space, and the polar molecules and unsaturated molecules have preferential adsorption ability, thus can bring a different polarity degree, degree of saturation is different, different molecular size and the boiling point of different molecular separation, which have the function of the "screening" molecules, called molecular sieve. Molecular sieve has been widely used because of its high adsorption capacity, strong thermal stability and other advantages that other adsorbents do not have.

Specification of 13X Molecular Sieve Desiccant:

Molecular Formula Na2O·Al2O3·(2.8±0.2)SiO2 ·(6-7)H2O
SiO2/ Al2O3 ≈ 2.6-3.6
Normal Pore Opening 10 Angstroms (Å)
Regeneration temp. (°C) 200-315
Advantages High Stability; High Crush Strength; Large Water Absorption; Low Attrition; Deep Dehydration

Molecular Sieve 13X Typical Physical Properties
Items Unit 8*12 Mesh 4*6 Mesh
Bead Size mm 1.6-2.5 3.0-5.0
Bulk Density g/ml ≥ 0.68-0.85 0.65-0.80
Equilibrium Water Capacity @ 25℃ wt% ≥ 24.0-27.0 24.0-27.0
Equilibrium Carbon Dioxide Capacity wt% ≥ 18 18
Heat of Adsorption BTU/lb of H2O 1800 1800
Crush Strength Point Contact N ≥ 30-80 80-130
Variation Coefficient - 0.3 0.3
Attrition Rate wt% ≤ 0.1 0.1
Size Qualification % ≥ 97 97
Package Moisture wt% ≤ 1.5 1.5
The interval value of the indexes above are based on the different grades of Molecular Sieve 13X

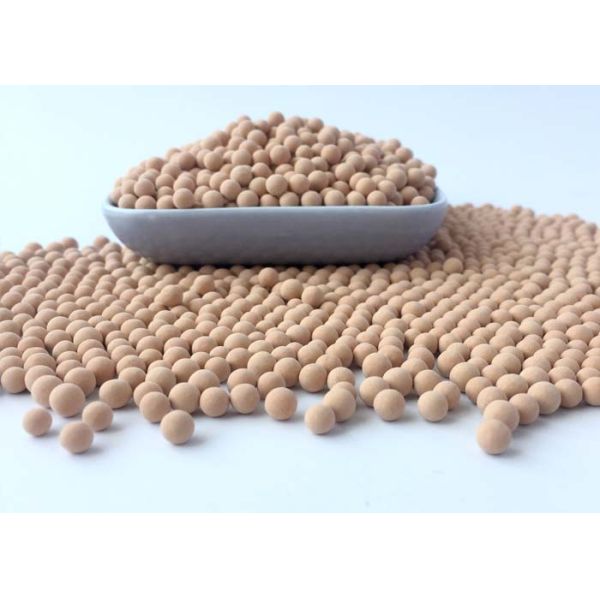

Product Display of 13X Molecular Sieve Desiccant:

13X Molecular Sieve Desiccant Desulfurization For Liquefied Petroleum Gas & Liquid Hydrocarbon

Applications of 13X Molecular Sieve Desiccant:

1. High-quality Zeolite Molecular sieve 13X for Oxygen PSA, LPG used for medical oxygen in small-scale

oxygen concentrators;

2. High-quality Zeolite Molecular sieve 13X for Oxygen PSA, LPG removal of mercaptans and hydrogen

sulfide from natural gas;

3. High-quality Zeolite Molecular sieve 13X for Oxygen PSA, LPG used for the deep drying of general gas

(such as compressed air, permanent gases);

4. High-quality Zeolite Molecular sieve 13X for Oxygen PSA, LPG ammonia synthesis gas drying, and

purification, production of bulk oxygen in PSA units;

5. High-quality Zeolite Molecular sieve 13X for Oxygen PSA, LPG is applied in the desiccating process

of industrial gas and gas purification in air separation unit;

6. High-quality Zeolite Molecular sieve 13X for Oxygen PSA, LPG removed CO2 in cracked gas, air plant feed purification (simultaneous removal of H2O and CO2);

7. High-quality Zeolite Molecular sieve 13X for Oxygen PSA, LPG has the characteristics of high CO2

adsorption capacity, low regeneration temperature, and long service life;

8. High-quality Zeolite Molecular sieve 13X for Oxygen PSA, LPG used for desulfurization aerosol propellant

deodorant and removal of n-chained composition from aromatics;

9. High-quality Zeolite Molecular sieve 13X for Oxygen PSA, LPG dehydration, and desulfuration of natural

gas, liquefied petroleum gas(LPG), liquid alkane, and liquefied hydrocarbon;

10. High-quality Zeolite Molecular sieve 13X for Oxygen PSA, LPG used for natural gas, liquefied petroleum

gas, liquid paraffin (propane, butane) dehydration, and desulphurization (removal of H2S and mercaptan).

The Attention of 13X Molecular Sieve Desiccant:

1. Xi'an Lvneng molecular sieve 13X desiccant cannot be exposed in the open air and should be stored in dry condition with the air-proof package.

2. Xi'an Lvneng molecular sieve 13X desiccant should be regenerated after a certain period of adsorption. The appropriate regenerated temperature would be better below 350°c.

FAQ of 13X Molecular Sieve Desiccant:
Q: Could we send a free sample for reference?
A: Yes, of course. Don't be shy, go ahead asking for a sample.


Q: What about the price and MOQ?
A: We promise a competitive price with top quality. We accept both large and small quantity orders.


Q: What is the lead time?
A: Within 15 days after the receipt of payment or L/C.


Q: Payment term?
A: 30% TT in advance, 70% TT balance before shipment.


Q: How to solve the quality problems after sales?
A: Take photos of the problems and send us. After confirmation, we will make a satisfying solution soon.


For More information please contact us. It's our pleasure to serve you.
