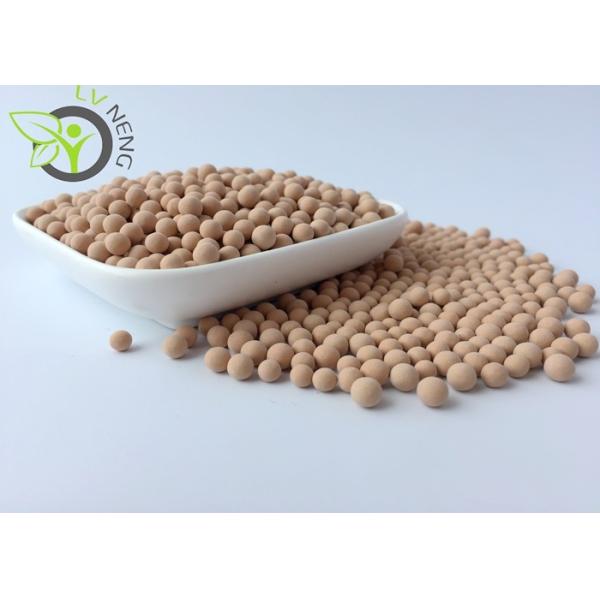

4A Molecular Sieve For Removal Of Methanol From Gas Streams
Products Introduction
Molecular sieve 4A is an alkali alumino silicate; it is the sodium form of the Type A crystal structure. 4A molecular sieve has an effective pore opening of about 4 angstroms (0.4nm). VODA type 4A molecular sieve will adsorb most molecules with a kinetic diameter of fewer than 4 angstroms and exclude those larger. Such adsorbable molecules include simple gas molecules such as oxygen, nitrogen, carbon dioxide and straight chain hydrocarbons. Branched chain hydrocarbons and aromatics are excluded.
Typical Chemical Formula
Na2O Al2O3 2.0SiO2 4.5H2O
SiO2: Al2O3 ≈2
Technical Index
| Molecular Sieve 4A Typical Physical Properties |
| Items | Unit | 8*12 Mesh | 4*6 Mesh |
| Bead Size | mm | 1.6-2.5 | 3.0-5.0 |
| Bulk Density | g/ml ≥ | 0.70-0.82 | 0.65-0.80 |
| Equilibrium Water Capacity @ 25℃ | wt% ≥ | 20.5-22.5 | 20.5-22.5 |
| Equilibrium Methanol Capacity | wt% ≥ | 15.0 | 15.0 |
| Heat of Adsorption | BTU/lb of H2O | 1800 | 1800 |
| Crush Strength | Point Contact | N ≥ | 30-80 | 85-160 |
| Variation Coefficient | - | 0.3 | 0.3 |
| Attrition Rate | wt% ≤ | 0.1 | 0.1 |
| Size Qualification | % ≥ | 98 | 98 |
| Package Moisture | wt% ≤ | 1.5 | 1.5 |
| The interval value of the indexes above are on the basis of the different grade of Molecular Sieve 4A |
Application
1) Drying and removing of CO2 from natural gas, LPG, air, inert and atmospheric gases, etc
2) Removal of hydrocarbons, ammonia and methanol from gas streams (ammonia syn gas treating)
3) Special types are used in the air break units of buses, trucks and locomotives
4) Packed in small bags, it may be used simply as a packaging desiccant
Our Services
1. We promise to reply to your inquiry relational our product within 24hours.
2.OEM&ODM service for your unique idea with absolutely convenient.
3.The experienced foreign trader with professional product knowledge.
4. The value on business credite, promise to protect your sales data, design, patent information.
5. Sample & OEM service is available
6. After-sales service. any question will be settled within 3 days
Storage
The molecular sieve shall be stored at room temperature, in which the relative humidity does not exceed 90%, and be not exposed to air, and prevented against water, acids and alkalizes.
Packaging
1, 25KG/carton; 2, 35KG/carton drum; 3, 150KG/Sealed iron drum
Delivery Time
About 3-15 days after the payment.
